Model No.: 5XZS-10DS
Capacity: 10 T/H, 10 T/H (Count By Wheat)
RAW MATERIAL: Carbon Steel Etc.
Sieve Layer Size: 2400*1500 Mm
Function: Remove Impurities And Bad Seeds From Grain
Weight: 2900 Kg
Power: 15.75 Kw
Dimension: 6500*2200*3600 Mm
Productivity: 50 sets/month
Place of Origin: China
Supply Ability: 50 sets/month
Certificate: ISO9001, CE, SGS, CIQ, SONCAP
HS Code: 8437109000
Maize Corn Cleaning Machine
Introduction of Maize Cleaning Machine
The Seed Processing Equipment multi-functional.
Air cleaning, Gravity Separating, Vibratory Sieve Separating and Grading all in one.
maximizing the cleaning efficiency, minimizing the wear and tear and ease of removability & changeability,
Note: When you process wheat, we can install a wheat huller on this machine. It will be very convienient.
Features of Grain Cleaning Machine
Multi-funtional, all in one
Easy to operate
Customized sieve layer and sieve hole size
Working Process of Seed Processing Machine

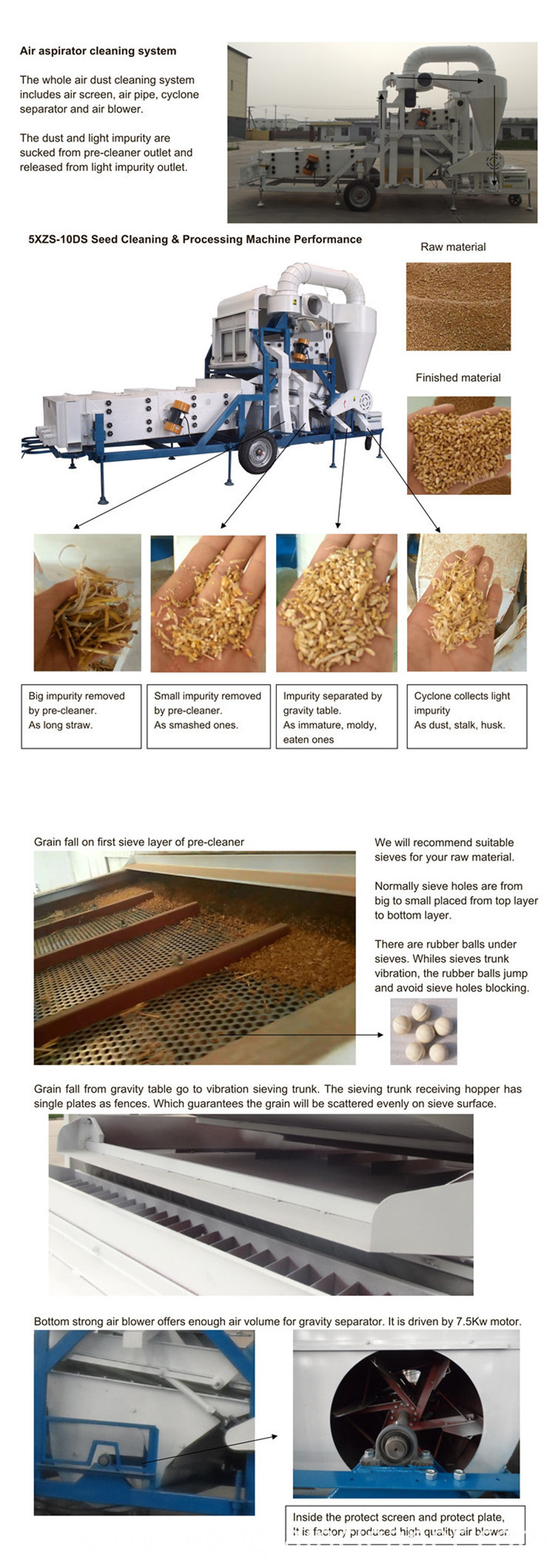

The intake hopper enables materials (like wheat) lifting up by the Bucket Elevator to enter to the vibratory air cleaning chamber, which is patent design and lead to the best air cleaning efficiency, then the air cleaned wheat enter to the Gravity Separator for remove the bad seed (partially eaten, immature, insect damaged, sick seed,, etc), then enter to the vibratory sieve for remove the large and small impurity, also grading your seed to different levels by size. The grain after processed by that machine, it will become seed which can be sowing.

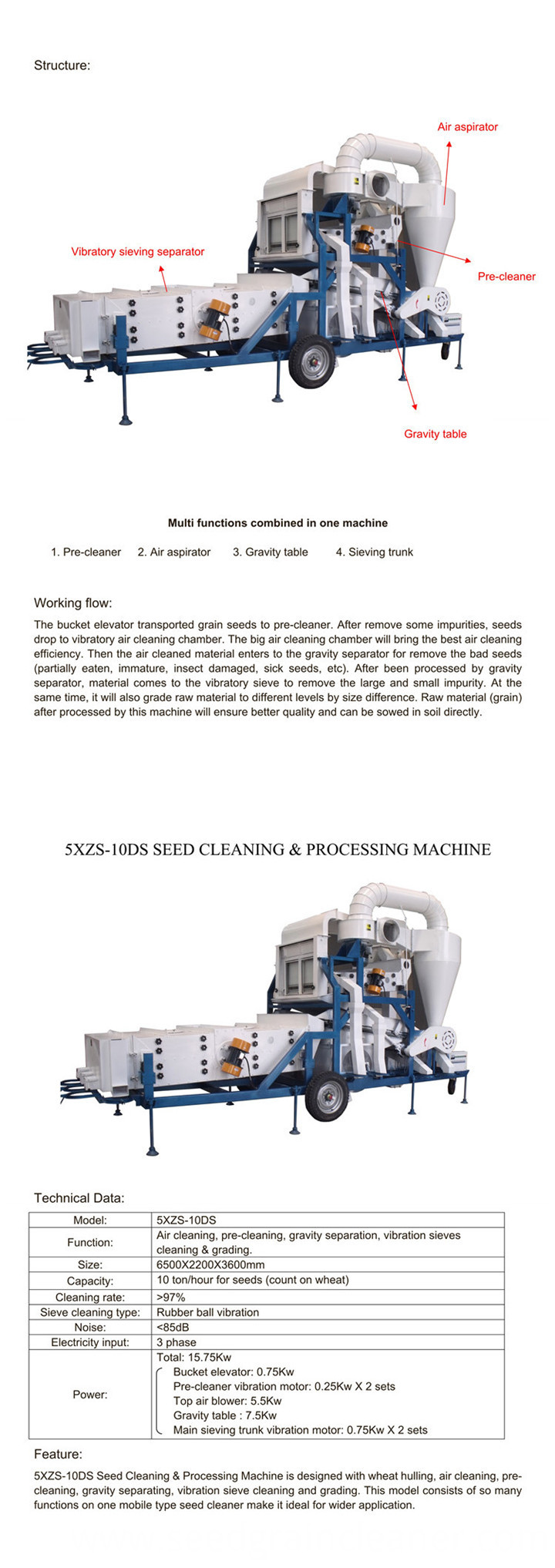

Specification of Seed Cleaning Machine
Air cleaning, pre-cleaning, gravity separation, vibration sieves cleaning & grading.
10 ton/hour for seeds (count on wheat)
Sieve cleaning type:
Rubber ball vibration
Bucket elevator: 0.75Kw
Pre-cleaner vibration motor: 0.25Kw X 2 sets
Top air blower: 5.5Kw
Gravity table : 7.5Kw
Main sieving trunk vibration motor: 0.75Kw X 2 sets

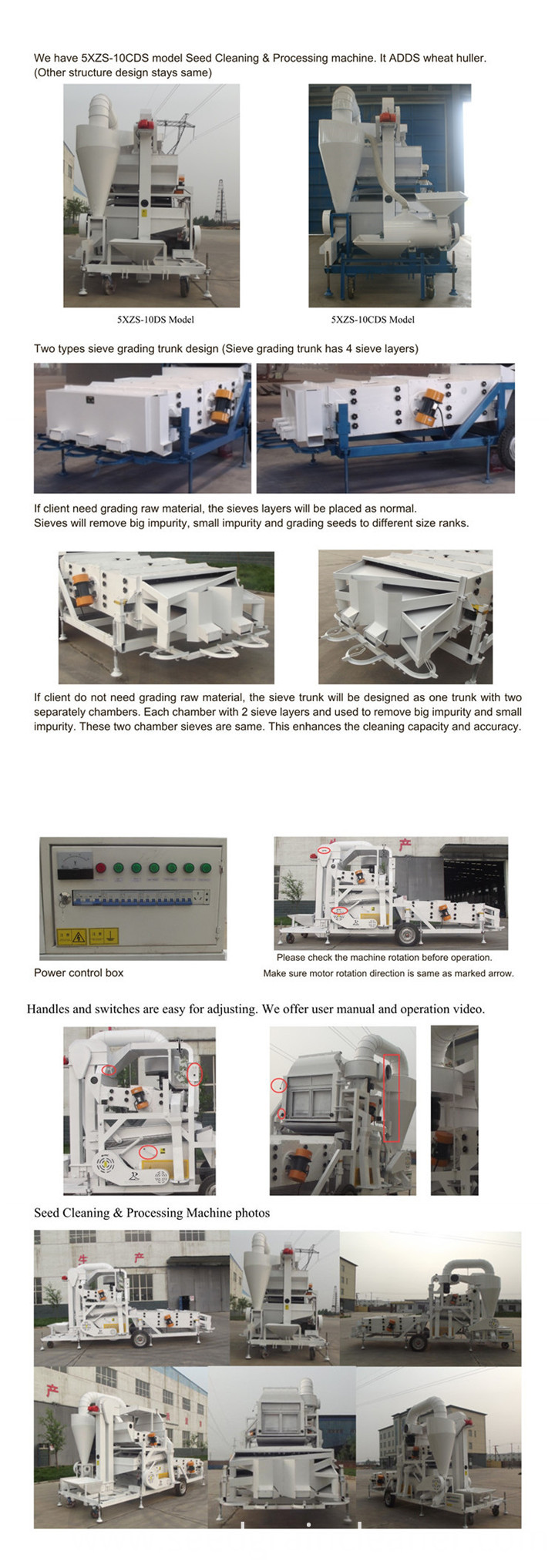

Data of Similar Products
|Model|| Capacity |
(metric tons per hour)
| Power |
| Weight |
| Dimension |
Length * Width * Height (mm)
| Sieve layer size |
|5XZS-10CDS||10||23.6||3200||6000*2200*3300||2400*1500||With Wheat Huller|

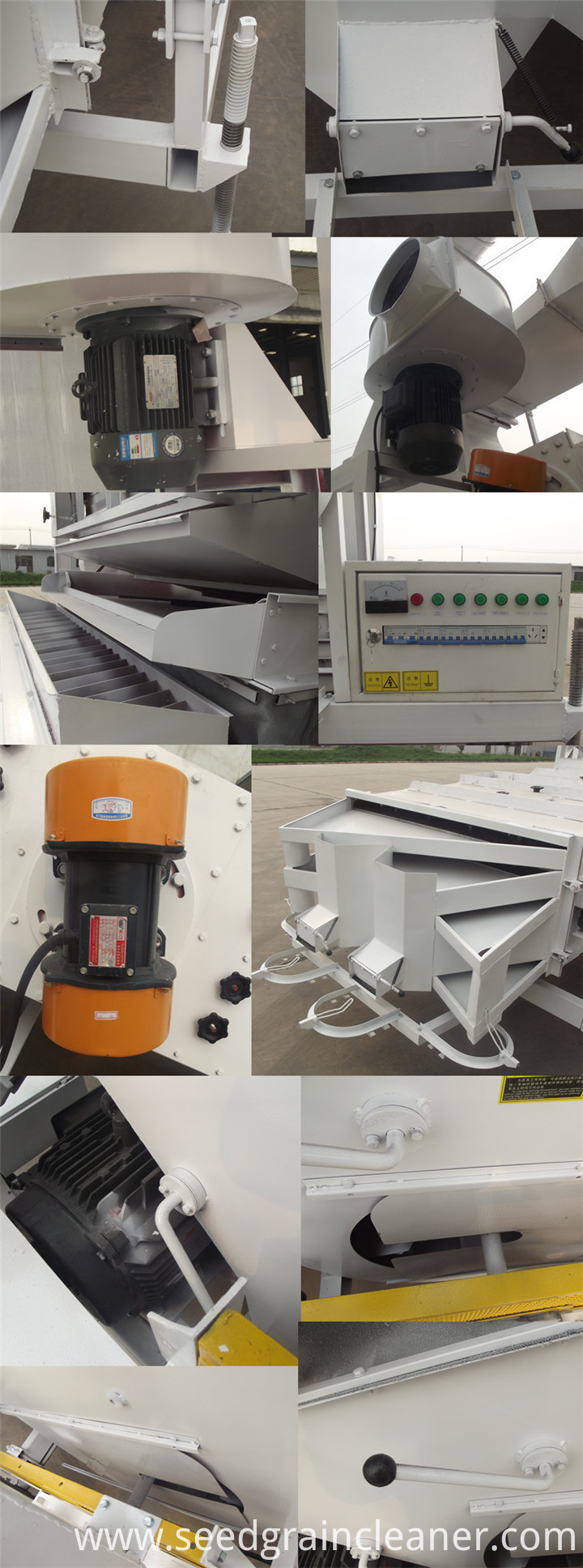

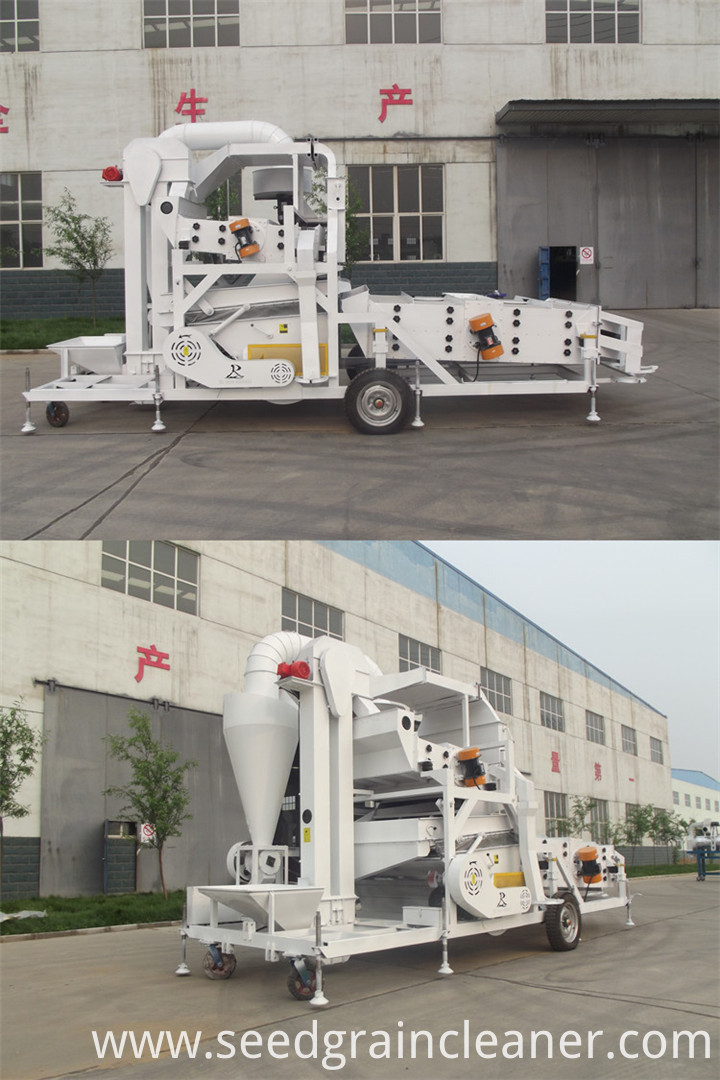

Photos and Details
Product Categories : Seed Cleaning & Processing Machine
