Soybean cleaning machine for beans sesame

Share to:
    Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 25 Days

Basic Info

Model No.: 5XZC-15

Feature: Installed Cylone Dust Separator

Color: White

Type: Air Suction Type

Warranty: One Year

Application: All Kinds Of Seeds

Place Of Origin: China

Power: 10.5 Kw

Weight: 1800 Kg

Dimension (L*W*H): 5600*2100*3200 Mm

Capacity: 10 Tons/Hr (count By Wheat)

Additional Info

Packaging: usually in wooden case

Productivity: 100 sets/month

Brand: SYNMEC

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 50 sets/month

Certificate: ISO9001, TUV, SGS, CE, SONCAP, CIQ

HS Code: 8437109000

Port: Tianjin Port

Product Description

5XZC-15 soybean cleaning machine is our hot sale machine model, usually used in high processing amount situations. It is installed cyclone dust separator. So it can collect the impurities together then discharge from outlet. Seed Cleaner & Grader sieve layers can be customized as required. Seed Cleaner & grader is user-friendly, easy to operate and maintain. The soybean Seed Cleaning Machine is wdely used for cleaning all kinds of seeds. The sieve holes can be designed based on the seeds' shape and size. the soybean cleaner machine high capacity is really powerful to processing the seed and grain.


FEATURES

Seed cleaner & grader becomes basic and most favorite cleaning machine in seed and grain industry of global market, with high efficiency, excellent performance and wide application.

It`s suitable for processing all kind of seeds, cereals, grains species and crops, such as wheat, paddy, rice, barely, maize, millet, cumin, sunflower seed, soybean, coffee bean, cocoa bean, oil seeds, etc.

Customized sieve layer amount and various machine combinations allow the seed cleaner & grader to be used for a wide range of applications and increase grading efficiency.

WORKING FLOW

Grain fall into grain inlet box after air sieving, and then under the vibration the grain jumping and flow to the multi-layer sieving trunk, following the grains well-proportioned enter to the upper layer sieve via the rubber curtain. Selected grains will fall into the next lower sieving panel after sieving, chaff and debris blocked by sieves and transfer to the outlet of large impurity. The selected grains will fall into the lower layers sieving panels, and will be graded into different levels of the different grain sizes by sieving in different sieving layers, that caused by the layers sieving panels have different mash size. Selected grains flow to the outlets of good grain, fill into bag hung on the bag holder. Cap of outlets can be used when shift bagging that means the cap can be close when you change the bag. It is the whole work flow for the separator.

Use different sieve to different process of different type of grains. The observing windows on the sieving trunk are for checking operation.

SPECIFICATIONS

Dimension (L×W×H)

5600×2100×3200 mm

Dimension of sieves

2400×1500 mm

Capacity (count by wheat)

10000 kg/h

Weight

1800 kg

Motor Power

Air Blower

Vibration Motors

Elevator Motor

Air Lock

7.5 kw

0.75 kw*2

0.75 kw

0.75 kw

Total Power

10.5 kw


Product name: Seed Cleaning Machine

Brand Name: SYNMEC

Use: Seed Cleaning Machine

Certification: ISO9001, SGS, TUV, SONCAP, CIQ, CE

Place of Origin: Hebei, China (Mainland)

Similar Product Models

Model

Capacity

(tons/hour)

Power

(kw)

Weight

(kg)

Dimension

(L*W*H)

5XZC-3DH

3

5

1300

3970*1800*2750

5XZC-5DH

5

7.74

1600

4970*1900*3100

5XZC-5CDH

5

11.74

1700

4970*1900*3100

5XZC-7.5D

7.5

10.1

1700

5600*2000*3200

5XZC-15

10

10.5

1800

5600*2100*3200

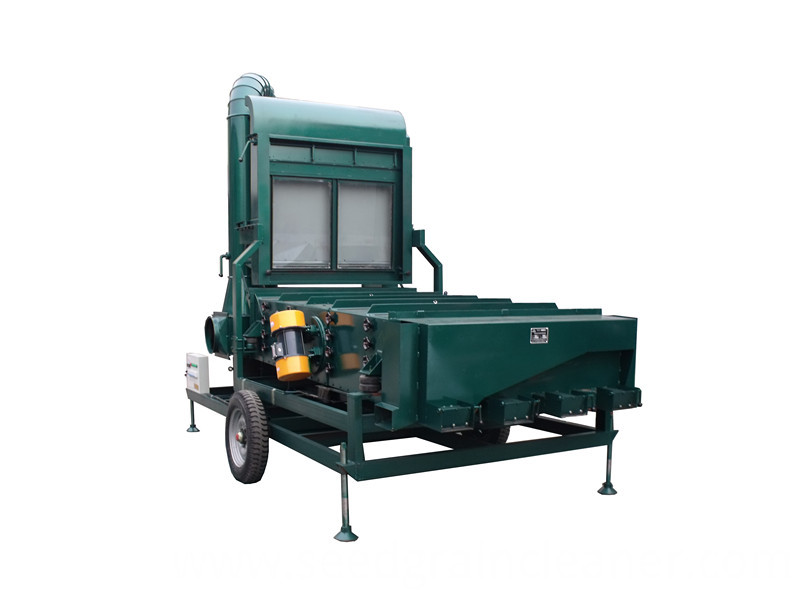

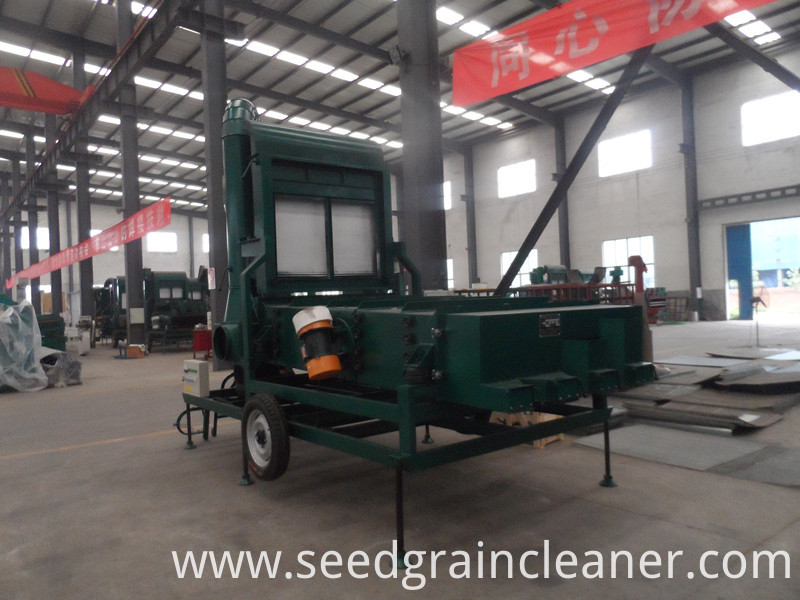

5XZC-15 Seed processing machine

seed processing machine

soybean cleaner

seed cleaner


customer


ruixue factory and workshop

machining equipment


Looking for ideal Soybean Cleaning Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Soybean Seed Cleaning Machine are quality guaranteed. We are China Origin Factory of Soybean Cleaner High Capacity. If you have any question, please feel free to contact us.
