SHIJIAZHUANG SYNMEC INTERNATIONAL TRADING LIMITED
Cocoa Bean Processing Machine,Cocoa Processing Machinery,Cocoa Bean Cleaning Machine
Model No.: 5XZF-7.5F
Application: All Kinds Of Seeds
Capacity: 7.5 Tons Per Hour
Dimension (L*W*H): 5600*2000*3200mm
Feature: With Destoner Plate
Place Of Origin: 10.1kw
Type: Air Suction Type
Warranty: One Year
Packaging: usually in wooden case
Productivity: 100 sets/month
Place of Origin: China
Supply Ability: 50 sets/month
Certificate: ISO9001, TUV, SGS, CE, SONCAP, CIQ
HS Code: 8437109000

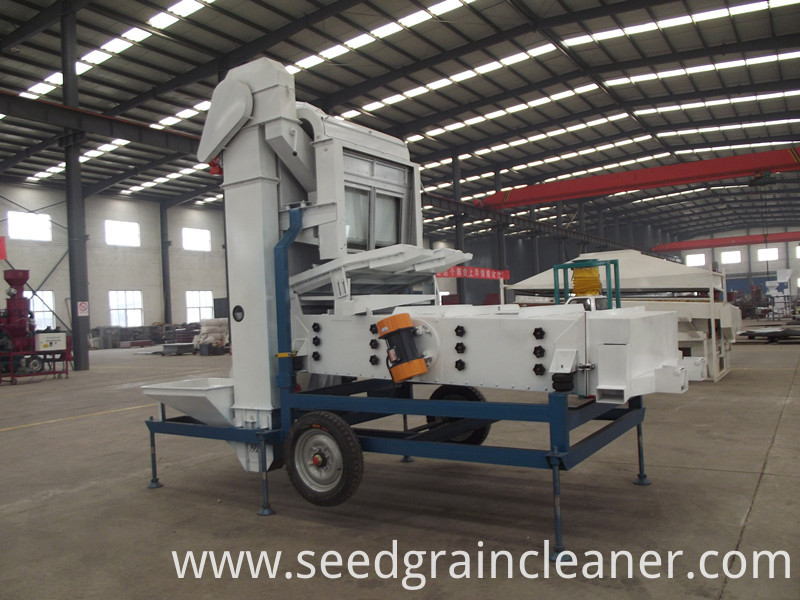

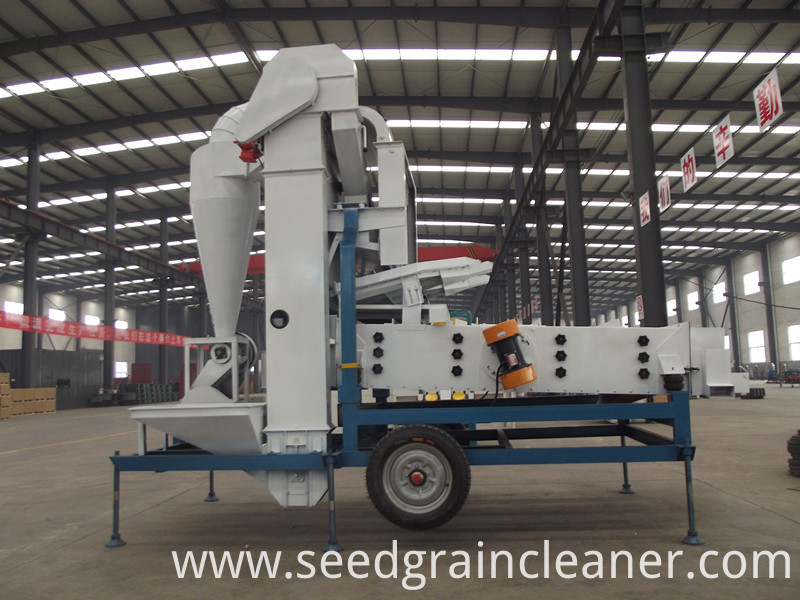

5XZF-7.5F Coffee bean cleaning machine
Feature of 5XZF-7.5F coffee bean cleaning machine

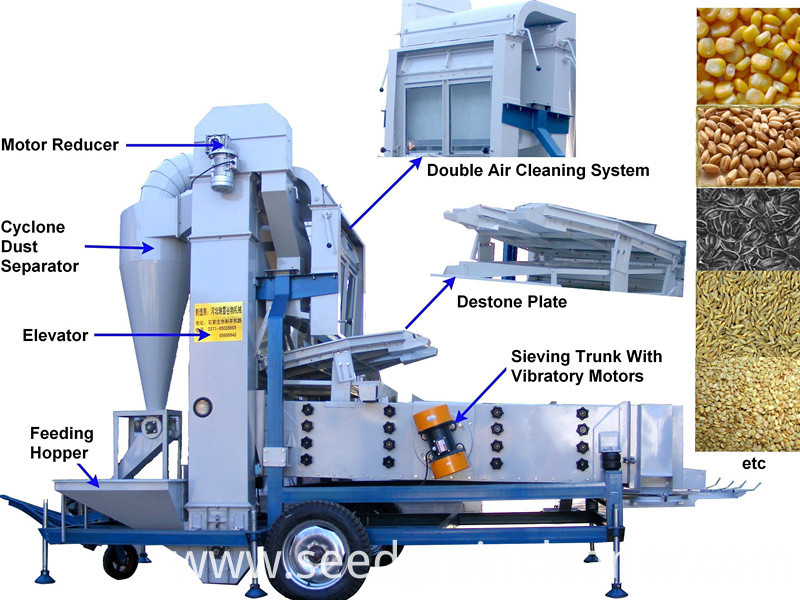

The 5XZF-5 coffee bean processing machine equipped with Double Air Cleaning System and stone removing platform. The coffee processing machine has multifunction seed cleaning, seed destoner, and seed grading.
Application of 5XZF-7.5F coffee bean cleaning machine
The 5XZF-5 coffee bean cleaning machine is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc.
Working principle of 5XZF-7.5F coffee bean cleaning machine
Light impurities can be sucked out by first air cleaning system, after that the left materials enter into stone removing platform for remove stones, then enter to second air clean system, finally enter to vibratory sieving trunk, the large and small impurities will be removed and at the same time the seed will be separated into different levels.
The grading and cleaning functions of vibratory sieve based on the geometrical size characteristic of seed, and change the sieves you can processing all kinds of seeds.
The sieves has Rubber Balls inside for the self-cleaning.
Dimension (mm) L×W×H=5600×2000×3200 Weight 1800 KG Capacity 7.5T/H(count by wheat) Motor Power Air blower Vibration Motors Elevator Motor Air Lock 7.5 kw 0.55kw*2 0.75kw 0.75kw Total Power 10.1kw
7.5T/H(count by wheat)
Product Categories : Seed Cleaner & Grader
