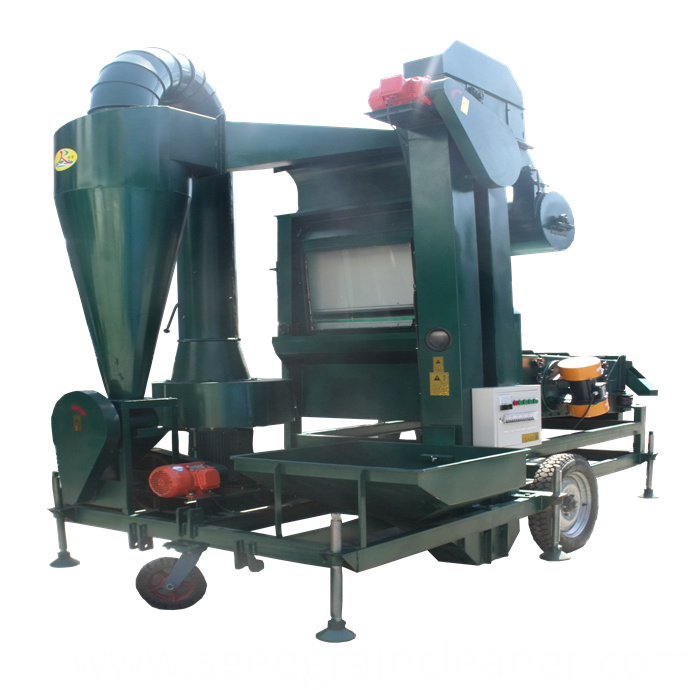

Seed cleaner with wheat huller and cyclone machine

Share to:
    Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: 5XZC-5CDH

Capacity: 5 Tons/Hr (count By Wheat)

Dimension (L*W*H): 4970*1900*3100 Mm

Color: White

Type: Air Suction Type

Warranty: One Year

Application: All Kinds Of Seeds

Place Of Origin: China

Power: 11.74 Kw

Weight: 1700 Kg

Feature: Installed Wheat Huller And Cylone

Additional Info

Packaging: usually in wooden case

Productivity: 100 sets/month

Brand: SYNMEC

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 50 sets/month

Certificate: ISO9001, TUV, SGS, CE, SONCAP, CIQ

HS Code: 8437109000

Port: Tianjin,China

Product Description


5XZC-5CDH multifunction Seed Cleaner working flow: Grain falls into grain inlet box after dehulling by wheat huller, then be cleaned by air sieve, following the grain flows to the multi-layer sieving trunk, following the grain well-proportioned enters to the upper layer sieve via the rubber curtain. Selected grains will fall into the next lower sieving panel after sieving, chaff and debris blocked transfer to the outlet of large impurity. The selected grains will fall into the lower layers sieving panels, and will be graded into different levels by different sieving layers with different sieve hole size. Selected grains flow to the outlets of good grain, fill into the bag hung on the bag holder. Cap of outlets can be used when shift bagging. That means the cap can be closed when you change the bag. It is the whole work flow for the separator.




Features:

1. Customized sieve layer amount and various machine combinations allow the seed cleaner machine to be used for a wide range of

applications and increase grading efficiency.

2. Installed wheat huller


3. Installed cyclone dust separator

The 5XZC-5CDH seed cleaner with wheat huller combines with a wheat huller machine at front, so seed cleaner with wheat huller has Multi-functions, Wheat Cleaning Machine can cleaning and grading the seed or grains, also hulling the wheat.

And the 5XZC-5CDH has a cyclone dust separator, is environmental friendly type.



Specifications of different models

Model

Capacity

(t/h)

Power

(kw)

Weight

(metric tons)

Dimension

L×W×H(mm)

Remarks

5XZC-3C

3

7.25

1.3

3970×1800×2750

Euipped with wheat huller

5XZC-5C

5

10.99

1.6

4650×1900×3100

5XZC-7.5C

7.5

14.85

2

5600×2000×3200

With wheat huller

5XZC-5CDH

5

11.74

1.7

4970×1900×3100

With wheat huller and Cyclone dust separator










Specifications

Dimension

(L×W×H)

4970×1900×3100

mm

Dimension of sieves

2000×1000

Mm

Capacity

(count by wheat)

5000 kg/h

Weight

1700 kg

Motor Power

Air Blower

Vibration Motors

Elevator Motor

Air Lock

Wheat Huller

5.5 kw

0.37 kw*2

0.75 kw

0.75 kw

4 kw

Total Power

11.74 kw

5cdh Wheat Seed CleanerSeed Cleaner And SorterMultifunction Seed Cleaner



Looking for ideal Seed Cleaner Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Wheat Cleaning And Hulling are quality guaranteed. We are China Origin Factory of Wheat Cleaner With Cyclone. If you have any question, please feel free to contact us.
