SHIJIAZHUANG SYNMEC INTERNATIONAL TRADING LIMITED

Grain cleaning machine with dust collector
Grain cleaning machine with dust collector
Grain cleaning machine with dust collector
Grain cleaning machine with dust collector
Grain cleaning machine with dust collector

Grain cleaning machine with dust collector

Payment Type: L/C,T/T,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 25 Days

Add to Basket

Basic Info

    Model No.: 5XZC-3B

    Application: All Kinds Of Seeds

    Color: White

    Feature: Universal Type

    Place Of Origin: China

    Type: Air Suction Type

    Warranty: One Year

    Capacity: 3 Tons/Hr (count By Wheat)

    Dimension (L*W*H): 3970*1800*2750 Mm

    Power: 4.25 Kw

    Weight: 1200 Kg

Additional Info

    Packaging: usually in wooden case

    Productivity: 100 sets/month

    Brand: SYNMEC

    Transportation: Ocean,Land,Air

    Place of Origin: China

    Supply Ability: 50 sets/month

    Certificate: ISO9001, TUV, SGS, CE, SONCAP, CIQ

    HS Code: 8437109000

    Port: Tianjin,China

Product Description

Introduction of features and applications of 5XZC-3B Grain Cleaning Machine. The 5XZC-3B grain cleaning machine equipped with dust reducer is widely used for cleaning and grading seeds/grains.It's universal type. The 5XZC-3B grain cleaning machine is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc. Customized sieve layer amount and various machine combinations allow the Seed Cleaner & Grader to be used for a wide range of application and increase cleaning efficiency.

Working principle of 5XZC-3B grain cleaning machine
Light impurities can be sucked out by air cleaning system. After the left materials enter into vibratory sieving trunk, the large and small impurities will be removed and at the same time the seed will be separated into different levels.
The grading and cleaning functions of vibratory sieve based on the geometrical size characteristic of seed, and change the sieves you can processing all kinds of seeds.
The sieves has rubber balls inside for the self-cleaning.

Specifications



Dimension (L×W×H)

3970×1800×2750 mm

Dimension of sieves

1250×800 mm

Capacity (count by wheat)

3000 kg/h

Weight

1200 kg

Motor Power

Air Blower

Vibration Motors

Elevator Motor

3 kw

0.25 kw*2

0.75 kw

Total Power

4.25 kw


Specification of grain cleaning machine


Model No.

Capacity(T/H)

Power(KW)

Weight(KG)

Sieve Size

Dimensions(MM)

Remarks

5XZC-3B

3

4.25

1.2

1250*800

3750*1650*2750

Grain cleaning and grading functions

5XZC-5B

5

6.99

1.5

2000*1000

4650*1850*3100

5XZC-5DH

5

7.74

1.6

2000*1000

4970*1900*3100

With cyclone dust separator

5XZC-7.5D

7.5

10.1

1.7

2400*1250

5150*2160*3500

5XZC-15

10

10.5

1.8

2400*1500

5400*2350*3500

5XZC-25

20

20.95

2.9

2400*1800

5820*2650*3600

Double Air Cleaning System

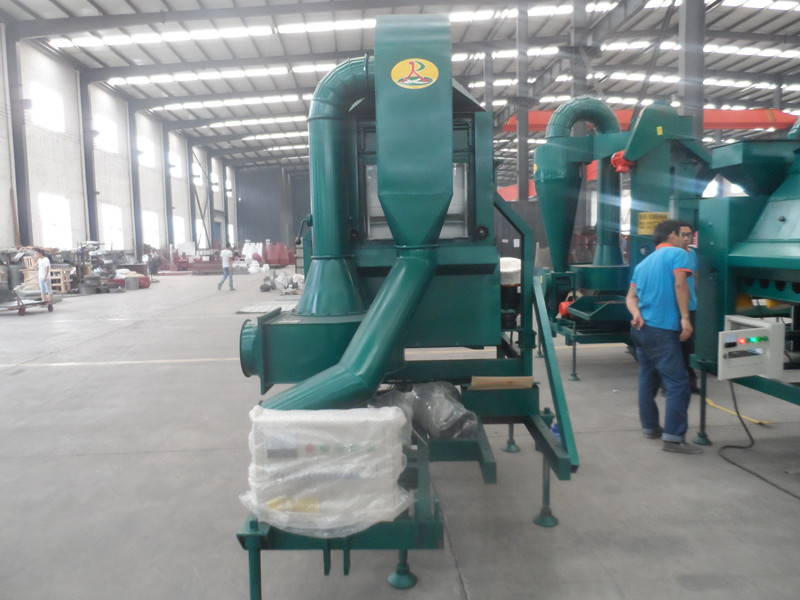

3B grain cleaning separator

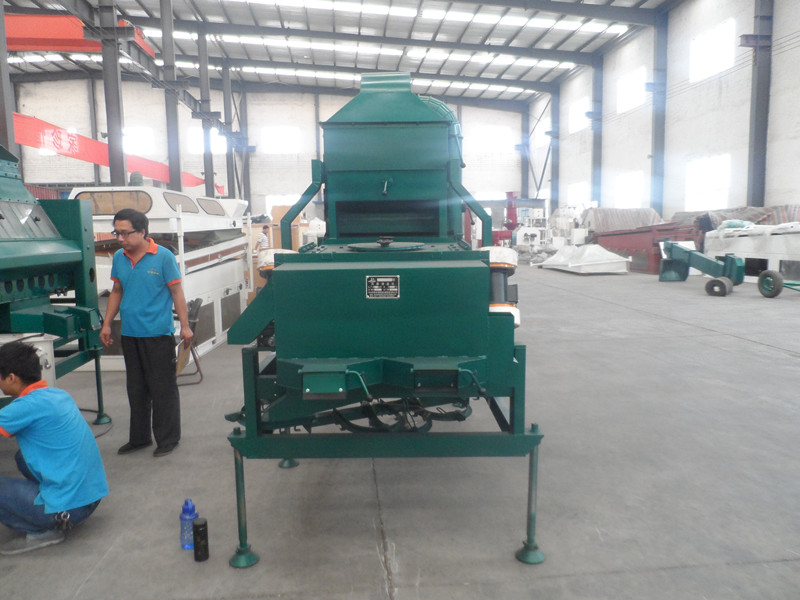

3B grain seed vibrating cleaner
