SHIJIAZHUANG SYNMEC INTERNATIONAL TRADING LIMITED
Bean Sorting Machine,Cocoa Bean Sorting Machine,Coffee Cocoa Bean Sorting Machine
Model No.: 5XZ-6
Type: Specific Gravity Separator
Place Of Origin: Hebei, China (Mainland)
Brand Name: SYNMEC
Warranty: 1 Year
Model Number: 5XZ-6
Capacity: 5 Tons/Hr (count By Wheat)
Dimension (L*W*H): 3440*1630*1900 Mm
Weight: 2000 KG
Total Power: 8.95KW
Packaging: wooden case or container
Productivity: 50 sets/month
Place of Origin: CHINA
Supply Ability: 100 SET PER MONTH
HS Code: 8437109000

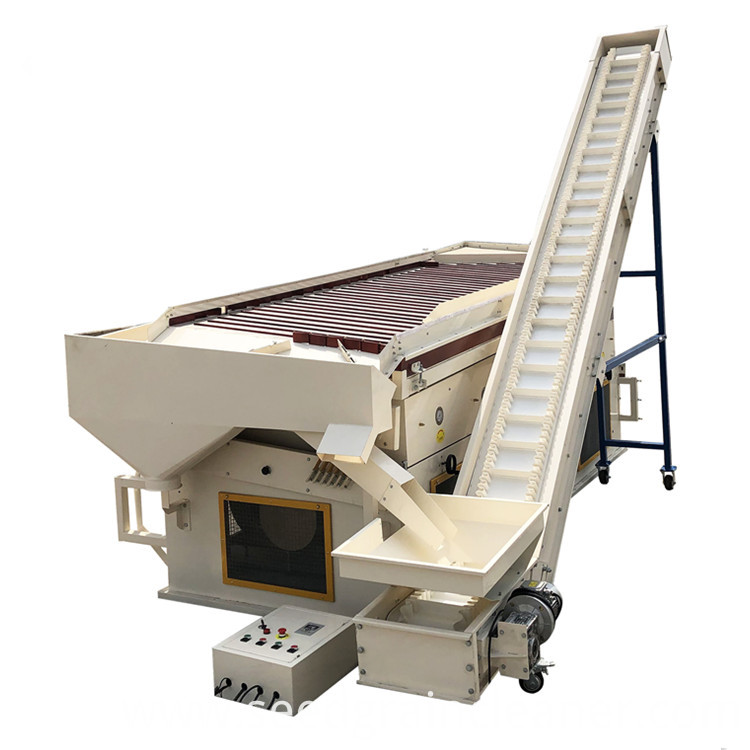

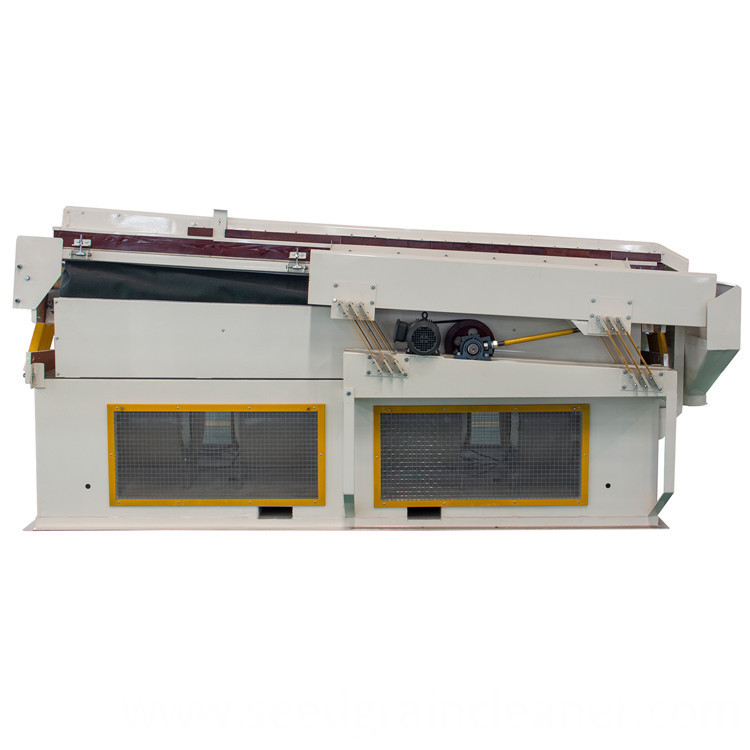

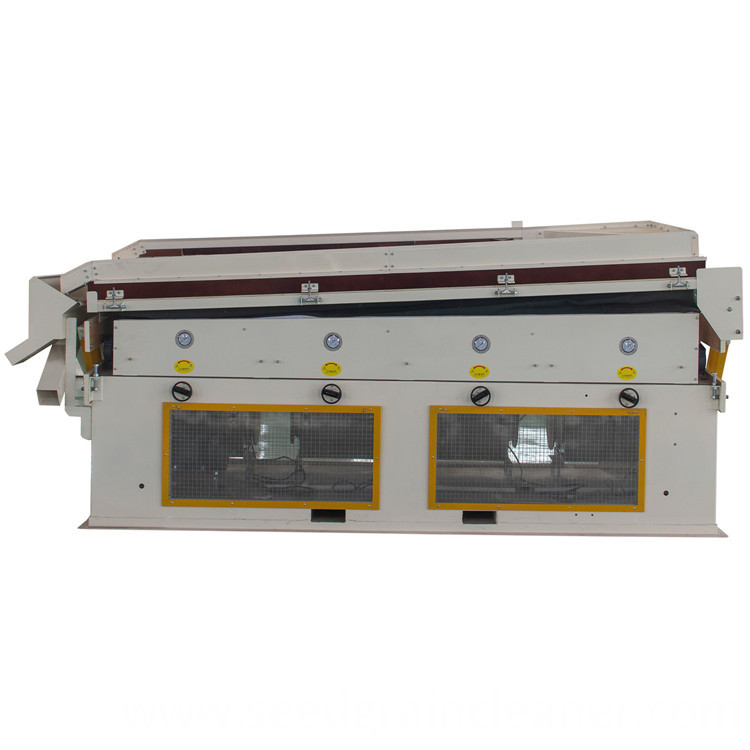

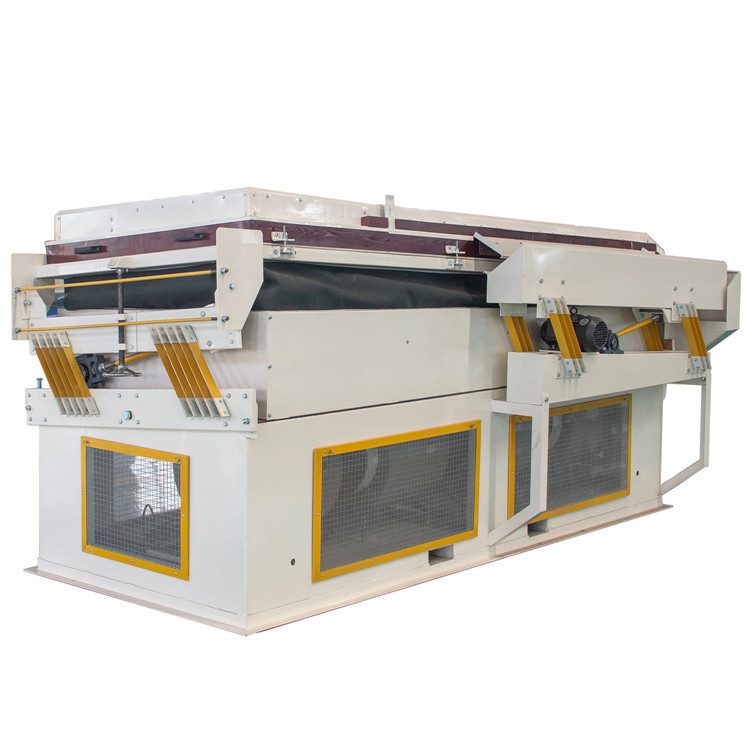

Coffee Cocoa Bean Sorting Machine
Introduction of Grain Separator Machine
1) Function: fine cleaning,sorting, separating, to remove bad, immature, insect da maged, moldy and germinated seeds, impurities, and admixtures such as stones of the same size but with different specific weight.
2) Application: cereal grains and seeds, sunflower seeds and tea leaves.
Working Principle of Gravity Separator Machine
The Air Blowing Type Gravity Separator works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.
Features of Grain Seed Gravity Table
- Vibrating screen system was configured inversely with equal inertia. Lengthways obliquity, transverse obliquity and vibration frequency can realize continuously variable transmission control.
- Aeration system was composed of several centrifugal blowers arranged arow in transverse direction. Each blower was equipped individual regulating set for stepless regulation of air flow, and another regulating plank was fixed in lengthways direction above the air's outlet end.
- Blower design was optimized, air intake entered centrally,and cabinet-like and noiseproof construction was adopted. All of these designs can effectively reduce vibration and noise, improving life time.
- Discharging system has lengthways and transverse channels which are transferable. And it was equipped with regulating sets vertically to control feed influent, so as to realize fine classification of seeds.
- Transparent and visible dust hood was fixed above the vibration screens, effectively reducing dust content in workshop, also easy to watch and control seeds' motion state on screen.
- Vibration frequency of screen can be regulated according to stepless control mode, and having the function of real-time display. 7. Primary parameters can be regulated in broad scope, improving flexibility.
Specification of Paddy Corn Separator:
|Model||Capacity (t/h)||Power (kw)||Weight (kg)||Dimension (mm)||Seive table size (mm)|
|5XZ-3 Gravity Separator||3||7.45||1300||2600*1500*1200||2250*1150|
|5XZ-6 Gravity Separator||5||8.95||2000||3440*1630*1900||3000*1200|
|5X-10 Gravity Separator||10||15||2500||4300*1960*2500||3900*1550|
